High Quality Cisco ICND1 100-105 Dumps Exam Questions And Answers (1-20)
QUESTION 1
Which form of NAT maps multiple private IP addresses to a single registered IP address by using different ports?
A. static NAT
B. dynamic NAT
C. overloading
D. overlapping
E. port loading
Correct Answer: C
QUESTION 2
Which of the following is true regarding the configuration of SwitchA?
A. only 5 simultaneous remote connections are possible
B. remote connections using ssh will require a username and password
C. only connections from the local network will be possible
D. console access to SwitchA requires a password
Correct Answer: B
QUESTION 3

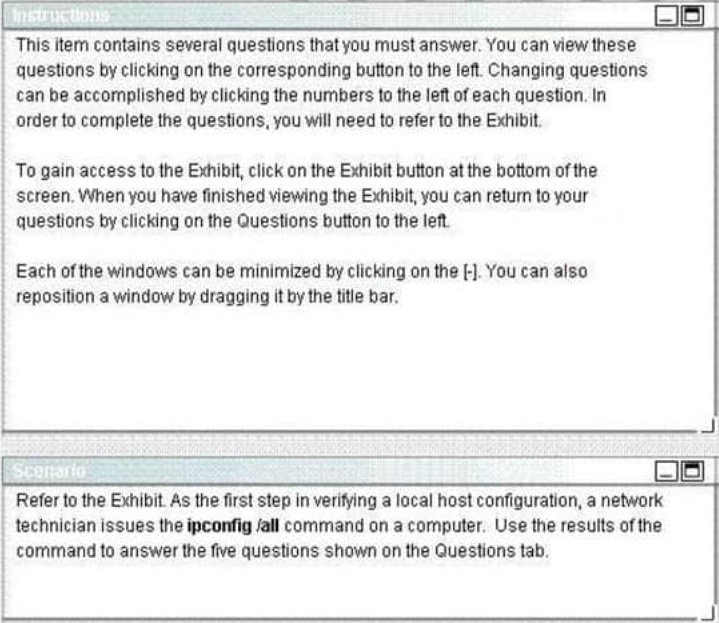

Refer to the exhibit.
What two things can the technician determine by successfully pinging from this computer to the IP address 172.16.236.1? (Choose two) 100-105 dumps
A. The network card on the computer is functioning correctly.
B. The default static route on the gateway router is correctly configured.
C. The correct default gateway IP address is configured on the computer.
D. The device with the IP address 172.16.236.1 is reachable over the network.
E. The default gateway at 172.16.236.1 is able to forward packets to the internet.
Correct Answer: AD
Explanation/Reference:
The source and destination addresses are on the same network therefore, a default gateway is not necessary for communication between these two addresses.
QUESTION 4
Which layer of the TCP/IP stack combines the OSI model physical and data link layers?
A. Internet layer
B. transport layer
C. application layer
D. network access layer
Correct Answer: D
Explanation/Reference:
The Internet Protocol Suite, TCP/IP, is a suite of protocols used for communication over the internet. The TCP/ IP model was created after the OSI 7 layer model for two major reasons.
QUESTION 5
Refer to the exhibit.
Which statement describes the effect of this configuration?
A. The VLAN 10 VTP configuration is displayed.
B. VLAN 10 spanning-tree output is displayed.
C. The VLAN 10 configuration is saved when the router exits VLAN configuration mode.
D. VLAN 10 is added to the VLAN database.
Correct Answer: D
Explanation/Reference:
Explanation: With the configuration above, when we type andquot;do show vlanandquot; we would not see VLAN 10 in the VLAN database because it has not been created yet.
QUESTION 6
Which value is indicated by the next hop in a routing table?
A. preference of the route source
B. IP address of the remote router for forwarding the packets
C. how the route was learned
D. exit interface IP address for forwarding the packets
Correct Answer: D
Explanation/Reference:
The routing table contains network/next hop associations. These associations tell a router that a particular destination can be optimally reached by sending the packet to a specific router that repr.
QUESTION 7
Which statement about routing protocols is true?
A. Link-state routing protocols choose a path by the number of hops to the destination.
B. OSPF is a link-state routing protocol.
C. Distance-vector routing protocols use the Shortest Path First algorithm.
D. IS-IS is a distance-vector routing protocol.
Correct Answer: B
QUESTION 8
What should be part of a comprehensive network security plan?
A. Allow users to develop their own approach to network security.
B. Physically secure network equipment from potential access by unauthorized individuals.
C. Encourage users to use personal information in their passwords to minimize the likelihood of passwords being forgotten.
D. Delay deployment of software patches and updates until their effect on end-user equipment is well known and widely reported.
E. Minimize network overhead by deactivating automatic antivirus client updates.
Correct Answer: B
Explanation/Reference:
From Cisco CCENT Exam Essentials study guide by Todd Lammle:
Know what the first part of a comprehensive network security plan is. The first part of your comprehensive network security plan i.
QUESTION 9
Refer to the exhibit.
A network has been planned as shown, Which three statements accurately describe the areas and devices in the network plan? (Choose three.)
A. Network Device A is a switch.
B. Network Device B is a switch.
C. Network Device A is a hub.
D. Network Device B is a hub.
E. Area 1 contains a Layer 2 device.
F. Area 2 contains a Layer 2 device.
Correct Answer: ADE
Explanation/Reference:
Explanation: AREA 1 has andquot;multiple collision domainsandquot; so Network Device A must be a device operating in Layer 2 or above (a router or switch) -andgt; A andamp; E are correct.
QUESTION 10
Which two characteristics apply to Layer 2 switches? (Choose two.)
A. Increases the number of collision domains
B. Decreases the number of collision domains
C. Implements VLAN
D. Decreases the number of broadcast domains
E. Uses the IP address to make decisions for forwarding data packets
Correct Answer: AC
Explanation/Reference:
Layer 2 switches offer a number of benefits to hubs, such as the use of VLANs and each switch port is in its own separate collision domain, thus eliminating collisions on the segment.
QUESTION 11
Refer to the topology and switching table shown in the graphic.
Host B sends a frame to Host C. What will the switch do with the frame?
A. Drop the frame
B. Send the frame out all ports except port 0/2
C. Return the frame to Host B
D. Send an ARP request for Host C
E. Send an ICMP Host Unreachable message to Host B
F. Record the destination MAC address in the switching table and send the frame directly to Host C
Correct Answer: B
QUESTION 12
Two hosts are attached to a switch with the default configuration. Which statement about the configuration is true?
A. IP routing must be enabled to allow the two hosts to communicate.
B. The two hosts are in the same broadcast domain.
C. The switch must be configured with a VLAN to allow the two hosts to communicate.
D. Port security prevents the hosts from connecting to the switch.
Correct Answer: B
QUESTION 13

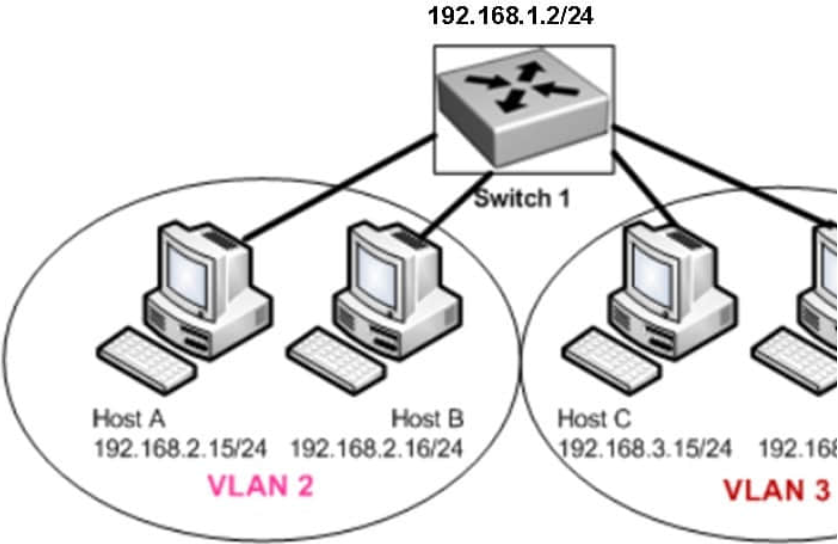

Refer to the exhibit.
Host A can communicate with Host B but not with Hosts C or D. 100-105 dumps How can the network administrator solve this problem?
A. Configure Hosts C and D with IP addresses in the 192.168.2.0 network.
B. Install a router and configure a route to route between VLANs 2 and 3.
C. Install a second switch and put Hosts C and D on that switch while Hosts A and B remain on the original switch.
D. Enable the VLAN trunking protocol on the switch.
Correct Answer: B
Explanation/Reference:
Two VLANs require a router in between otherwise they cannot communicate. Different VLANs and different IP subnets need a router to route between them.
QUESTION 14
Refer to the exhibit.
The network is converged.After link-state advertisements are received from Router_A, what information will Router_E contain in its routing table for the subnets 208.149.23.64 and 208.149.23.96?
A. 208.149.23.64[110/13] via 190.173.23.10, 00:00:07, FastEthemet0/0 208.149.23.96[110/13] via 190.173.23.10, 00:00:16, FastEthemet0/0
B. 208.149.23.64[110/1] via 190.172.23.10, 00:00:07, Serial1/0 208.149.23.96[110/3] via 190.173.23.10, 00:00:16, FastEthemet0/0
C. 208.149.23.64[110/13] via 190.173.23.10, 00:00:07, Serial1/0 208.149.23.96[110/13] via 190.173.23.10, 00:00:16, Serial1/0 208.149.23.96[110/13] via 190.173.23.10, 00:00:16, FastEthemet0/0
D. 208.149.23.64[110/3] via 190.172.23.10, 00:00:07, Serial1/0 208.149.23.96[110/3] via 190.173.23.10, 00:00:16, Serial1/0
Correct Answer: A
Explanation/Reference:
Router_E learns two subnets subnets 208.149.23.64 and 208.149.23.96 via Router_A through FastEthernet interface.
The interface cost is calculated with the formula 108 / Bandwidth.
QUESTION 15
A router has learned three possible routes that could be used to reach a destination network. One route is from EIGRP and has a composite metric of 20514560. Another route is from OSPF with a metric of 782.
The last is from RIPv2 and has a metric of 4.
Which route or routes will the router install in the routing table?
A. the OSPF route
B. the EIGRP route
C. the RIPv2 route
D. all three routes
E. the OSPF and RIPv2 routes
Correct Answer: B
Explanation/Reference:
When one route is advertised by more than one routing protocol, the router will choose to use the routing protocol which has lowest Administrative Distance.
QUESTION 16
Which three approaches can be used while migrating from an IPv4 addressing scheme to an IPv6 scheme? 100-105 dumps (Choose three)
A. static mapping of IPv4 address to IPv6 addresses
B. configuring IPv4 tunnels between IPv6 islands
C. use DHCPv6 to map IPv4 addresses to IPv6 addresses
D. use proxying and translation (NAT-PT) to translate IPv6 packets into IPv4 packets
E. configure IPv6 directly
F. enable dual-stack routing
Correct Answer: BDF
Explanation/Reference:
Connecting IPv6 islands with tunnels An IPv6 island is a network made of IPv6 links directly connected by IPv6 routers.
In the early days of IPv6 deployment, there are many IPv6 islands.
QUESTION 17
An administrator is in the process of changing the configuration of a router. What command will allow the administrator to check the changes that have been made prior to saving the new configuration?
A. Router# show startup-config
B. Router# show current-config
C. Router# show running-config
D. Router# show memory
E. Router# show flash
F. Router# show processes
Correct Answer: C
Explanation/Reference:
This command followed by the appropriate parameter will show the running config hence the admin will be able to see what changes have been made, and then they can be saved.
QUESTION 18
Which network device functions only at Layer 1 of the OSI model?
A. Option A
B. Option B
C. Option C
D. Option D
E. Option E
Correct Answer: B
Explanation/Reference:
Most hubs are amplifying the electrical signal; therefore, they are really repeaters with several ports. Hubs and repeaters are Layer 1 (physical layer) devices.
QUESTION 19
Refer to the exhibit.
A TFTP server has recently been installed in the Atlanta office. The network administrator is located in the NY office and has made a console connection to the NY router. After establishing the connection they are unable to backup the configuration file and IOS of the NY router to the TFTP server. What is the cause of this problem?
A. The NY router has an incorrect subnet mask.
B. The TFTP server has an incorrect IP address.
C. The TFTP server has an incorrect subnet mask.
D. The network administrator computer has an incorrect IP address.
Correct Answer: C
Explanation/Reference:
The TFTP server is using a mask of 255.255.255.240 (/28) while the router is configured with a /29. Because of this, the Atlanta router does not see the TFTP server as being in the same subnet.
QUESTION 20
Which of the following IP addresses are valid Class B host addresses if a default Class B mask is in use? 100-105 dumps (Choose two.)
A. 10.6.8.35
B. 133.6.5.4
C. 192.168.5.9
D. 127.0.0.1
E. 190.6.5.4
Correct Answer: BE
Explanation/Reference:
The IP addresses 133.6.5.4 and 190.6.5.4 are both valid Class B addresses when a default mask is in use. The Class B default mask is 255.255.0.0 and the range of valid addresses is 128.0.0.0- 191.2.
